The config file

The config file, named config.lua and located in the same folder as the Iris Engine executable, is a Lua script that defines some variables that control the behavior of the game.

In this page you can find detailed information about all the settings you can customize in the config file.

Tip

You don’t need to create a config file from scratch. Download a template and edit the included config file to suit your needs.

Game

This section contains the description of your game.

name

The name of your game. It will be displayed as the title of the window.

iconFile

Path to the image to use as the icon of your game. It will be displayed in the Windows taskbar and it will be used as the icon of the window of your game. This image can be in any supported format.

startScript

Path to the script to run when the game starts.

This path must be relative to the scripts path specified in the paths section.

Screen

This section defines the properties of the window of your game.

fullscreen

Whether to launch the game in fullscreen mode.

The player can toggle fullscreen mode by pressing Alt+Enter.

resolution

The native resolution of your game.

The game will be rendered at this resolution and then scaled to the actual size of the window using letterboxing when necessary.

Text window

This section defines the properties of the box where the text of dialogue and narration appears.

position

The position of the text window.

size

The size in pixels of the text window.

margin

The margin allows you to leave some space between the area where the text will be written and the borders of the text window. This space is specified in pixels.

background

Path to the image to use as the background of the text window. This image will be stretched to fill the text window.

This path must be relative to the gui path specified in the paths section.

backgroundAlpha

The opacity of the background image of the text window defined as a number in the range [0, 255] where 0 is completely transparent and 255 the opacity of the original image.

font

Path to the font file to use to render the text of your game.

fontSize

The point size (based on 72 DPI) of the font to use to render the dialogue and narration text of your game.

fontColor

The color in rgb of the narration and dialogue text of your game.

shadowDistance

Distance in pixels of the drop shadow of the text of your game. If set to 0, no shadow will be drawn.

shadowColor

The color in rgba of the drop shadow of the text of your game.

spacing

Line spacing in pixels. This will be added to the recommended line spacing of your font, which it’s usually a few more pixels than necessary for lines to not overlap. Negative numbers bring lines together.

wordWrapping

If enabled, the text of the text window will be split breaking lines between words rather than within words, when possible.

formatJapaneseText

If enabled, pages that start with ‘「’, ‘『’ or ‘（’ will be indented as is common in Japanese visual novels.

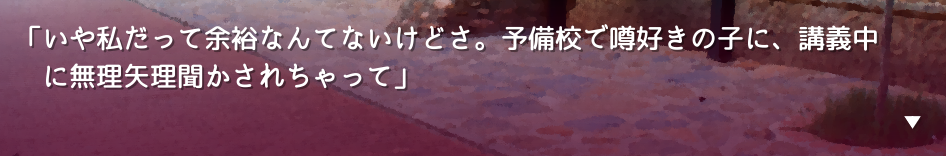

formatJapaneseText enabled

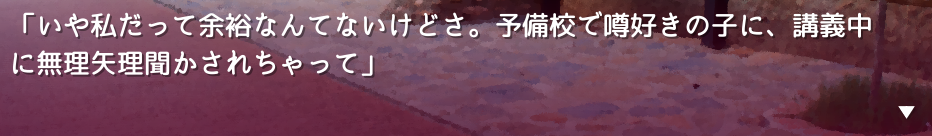

formatJapaneseText disabled

characterDelay

Controls the typewriter effect of the text window. The time in seconds it takes for each character to appear.

namePosition

The position within the text window of the name of the character that is speaking.

nameFontSize

The point size (based on 72 DPI) of the name of the character that is speaking.

nameFontColor

The color in rgb of the name of the character that is speaking.

nameShadowDistance

Distance in pixels of the drop shadow of the name of the character that is speaking. If set to 0, no sadow will be drawn.

nameShadowColor

The color in rgba of the drop shadow of the name of the character that is speaking.

indicatorImage

Path to the image to use to tell the player that they can click to dismiss the text currently displayed in the text window.

The arrow in the bottom right corner of this image is an example of an indicator image:

The indicator image will be treated as a sprite sheet.

This path must be relative to the gui path specified in the paths section.

indicatorPosition

The position of the indicator image within the text window.

showIndicatorAfterLastCharacter

If true, indicatorPosition will be ignored and the indicator image will be placed after the last character of text.

showIndicatorAfterLastCharacter set to true

indicatorSpriteSheet

The properties of the sprite sheet of the indicator image.

showTransition

Properties of the transition used to make the text window visible.

hideTransition

Properties of the transition used to make the text window invisible.

Choices

This section defines the properties of the menus used to present choices to the player.

position

Position of the area where the options will appear. The buttons will be vertically and horizontally centered in this area.

size

Size in pixels of the area where the options will appear. The buttons will be vertically and horizontally centered in this area.

background

The background image used to create the buttons. Read Button constructor for more details.

useVerticalLayout

Wether the layout of the background image used to create the buttons is vertical. Read Button constructor for more details.

separation

Distance in pixels from the top left corner of one button to the top left corner of the next.

showTransition

Properties of the transition used to show the options to the player.

hideTransition

Properties of the transition used to hide the options.

Paths

This section defines the folders where the most common asset types are located, so that you don’t have to write the full path when using these assets in your scripts. They can all point to the same folder if you want to.

scripts

Path to the folder where scripts are located.

sprites

Path to the folder where images of sprites are located.

characters

Path to the folder where images of character sprites are located.

backgrounds

Path to the folder where background images are located.

transitions

Path to the folder where control images of imageDissolve transitions are located.

gui

Path to the folder where GUI images are located.

luts

Path to the folder where the lookup tables (LUTs) used for color grading are located.

music

Path to the folder where the soundtrack of your game is located.

sounds

Path to the folder where the sounds of your game are located.

videos

Path to the folder where video files are located.

separator

String used as a separator when constructing the filenames of expression images.

Sounds

This section defines some GUI sounds.

buttonHoverSound

Path to the sound to play when the mouse enters a button.

This path must be relative to the sounds path specified in the paths section.

buttonClickSound

Path to the sound to play when the player clicks a button.

This path must be relative to the sounds path specified in the paths section.

Z-indexes

While visual novels are 2D games, when two objects overlap we need to know which one should be drawn on top of the other. For this reason, all objects that can be drawn on the screen have a z-index. You can think of z-indexes as the layers of a drawing program.

An object with greater z-index is always in front of an object with a lower z-index.

This section defines the default z-index of some objects of the game.

sceneTransitionEffects

Some transition effects draw an image in front of all of the objects of the scene. This is the z-index of those effects. Should be the highest.

textWindow

The z-index of the text window.

choices

The z-index of the menus used to present choices to the player.

characters

The default z-index of character sprites.

backgrounds

The z-index of the background.

Cache

Images, sounds and other assets need to be loaded into memory before they can be used in the game. However, loading takes time and can cause stutter and framerate drops during gameplay. For this reason, once an asset has been loaded, it remains in memory as long as possible so that the next time it is needed we don’t have to load it again. The part of the memory where these assets reside is called the cache.

This section defines the properties of the cache and controls the way Iris Engine loads assets into memory.

maxSizeInMiB

The maximum size of the cache in MiB. Keep in mind that this only takes into account the size of the assets themselves, so the actual memory requirements of your game will be higher.

allowPrecaching

Iris Engine loads assets the first time they are needed. This means that the images of sprites, for example, are loaded the first time the sprite is displayed on the screen. This can cause stutter during gameplay.

However, if this option is enabled, the loading will take place when the object is defined, which is usually at the beginning of the script. This way, the player will be less likely to notice the stutter, especially if the loading happens just before a scene transition.

finishLoadingSceneTransitions

As backgrounds don’t need to be defined, they can’t be precached even if allowPrecaching is enabled. This may result in the game skipping the first frames of scene transitions.

If this option is enabled, the start of scene transitions will be delayed until the background image has been loaded, making it impossible for the player to notice the stutter.

This option only has an effect on the scene function.
